Size: Standard 200mm height, customizable length
Core Wood: Poplar / Birch
Surface Treatment: Waterproof paint, plastic end caps

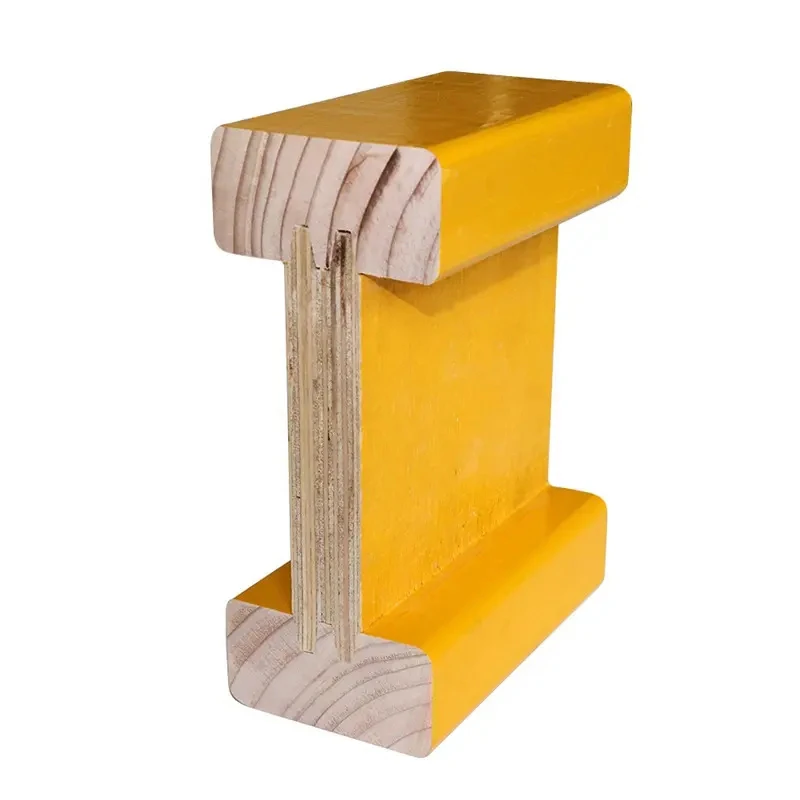

H20 Timber Beam is a standard I-shaped wooden beam complying with EN 13377 standard. It adopts finger-jointed spruce/pine flanges and multi-ply plywood web bonded with waterproof phenolic glue. Featuring light weight, high rigidity and strong load capacity, it is widely used as the core support for concrete formwork in high-rise buildings, bridges and municipal engineering projects.
This engineered wooden beam is a mainstream component of modern formwork systems. It combines superior mechanical properties and excellent durability, easy to assemble and dismantle, becoming a cost-effective substitute for steel beams.
| Product Name | H20 Formwork Timber Beam |
|---|---|
| Flange Material | Solid Wood (Spruce / Pine / Larch) |
| Web Material | Waterproof Plywood (Poplar or Birch core, optional) |
| Beam Height | 200 mm |
| Standard Flange Size | 80 mm (W) x 40 mm (T) |
| Standard Web Thickness | 27 mm / 30 mm (optional) |
| Length | 1.8 m -6.0 m (customizable) |
| Moisture Content | 8% – 12% |
| Standard Compliance | EN 13377 |
Inner Packing
Plastic end protection caps + Moisture-proof plastic film wrapping.
Outer Packing
Export standard wooden pallets with steel belts for fastening.
Shipping
Full container shipment worldwide. Delivery within 10–20 days after order confirmation.
